This guide covers the day-to-day workflow for authoring BindJS components — what the editor gives you, how to structure a component file, how to use the inspector schema, and how to iterate with the live preview.

​
Prerequisites

  • Familiarity with Components and Packages.
  • Basic understanding of declarative UI (SwiftUI or similar). BindJS is inspired by SwiftUI’s API.

​
The components surface in MCP App Studio

The Components tab in MCP App Studio is the BindJS authoring surface. The left sidebar lists every component in the project’s package; the center pane is a code editor; the right pane is the live preview.

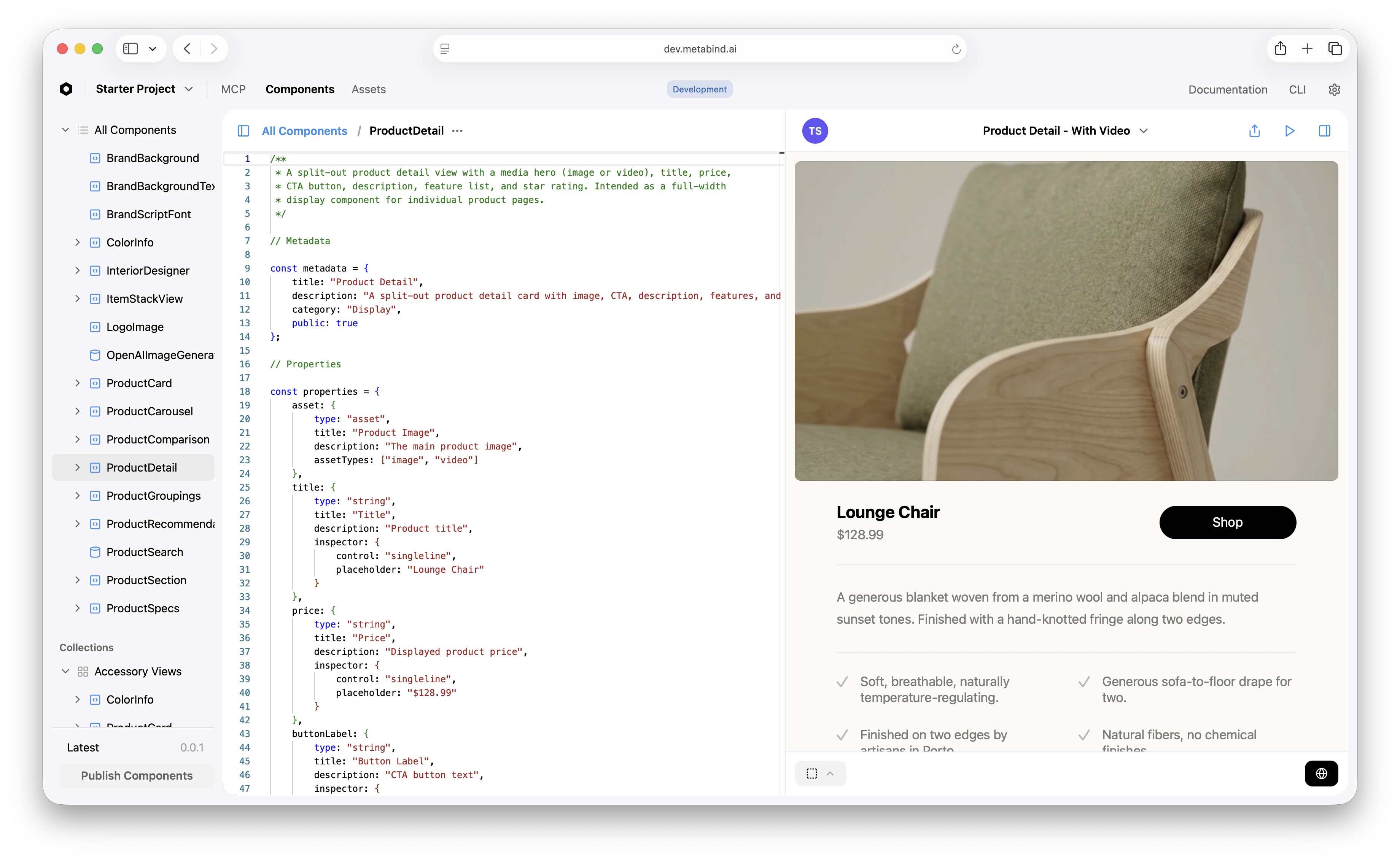

The Components tab in MCP App Studio — left sidebar lists components in the project, center pane shows the BindJS code editor for ProductDetail, right pane renders a live preview of the active component
The editor has TypeScript-aware completion, syntax highlighting, and live error reporting. The preview re-renders on every save.

​
Component file structure

A typical component file has these sections:
// 1. Metadata — what the component is and where it appears in MCP App Studio
const metadata = {
  title: "Product Detail",
  description: "A split-out product detail card with image, CTA, and reviews",
  category: "Display",
  public: true
};

// 2. Property schema — the inputs the AI provides
const properties = {
  title: { type: "string", title: "Title", inspector: { control: "singleline" } },
  price: { type: "string", title: "Price" },
  // ...
} satisfies ComponentProperties;

// 3. Sub-components — internal building blocks
const ProductTitle = (props: InferProps<typeof properties>) => {
  return Text(props.title).font("title2").fontWeight("bold");
};

// 4. Body — the entrypoint that renders the component
const body = (props: InferProps<typeof properties>): Component => {
  return VStack({ spacing: 16 }, [
    ProductTitle(props),
    // ...
  ]);
};

// 5. Previews — sample inputs for MCP App Studio's preview
const previews = [
  Self({ title: "Lounge Chair", price: "$128.99" })
    .previewName("Default")
];

// 6. Export
export default defineComponent({ metadata, properties, body, previews });
This shape is conventional, not enforced. The only required pieces are properties, body, and the default export — but following the convention helps anyone (including yourself in three months) read the file.

​
The property system

A component’s properties block declares two things at once: the tool’s input schema (what the AI must provide) and the inspector configuration (how a non-developer configures the property in MCP App Studio).
Property typeUse for
stringText values
numberNumeric values, optionally with min/max/step
booleanToggles
assetImages, videos, 3D models, PDFs (with assetTypes)
arrayLists of values, with valueType for each item
groupNested object with its own properties
componentA reference to another component (with allowedComponents)
The inspector config controls the editor UI:
properties: {
  starCount: {
    type: "number",
    title: "Star Count",
    inspector: { control: "slider", step: 1 },
    validation: { min: 0, max: 5 }
  },
  description: {
    type: "string",
    title: "Description",
    inspector: { control: "multiline", numberOfLines: 4, placeholder: "..." }
  },
  features: {
    type: "array",
    title: "Features",
    valueType: { type: "string" },
    validation: { minItems: 0, maxItems: 20 }
  }
}
For the full property reference, see the BindJS Reference.

​
Layout primitives

BindJS layout primitives follow a SwiftUI-inspired shape:
  • VStack({ spacing, alignment }, [children]) — vertical stack.
  • HStack({ spacing, alignment }, [children]) — horizontal stack.
  • ZStack([children]) — overlapping layers.
  • Spacer() — flexible space.
  • ScrollView([children]) — scrollable container.
Modifier methods chain on any component:
Text("Hello")
  .font("title")
  .fontWeight("bold")
  .foregroundStyle(Color("black"))
  .padding(16)
  .background(Color("#F5F5F5"))
  .cornerRadius(8);
For the full set of primitives and modifiers, see the BindJS Reference.

​
Sub-components and reuse

Break a complex body into named functions:
const ProductImage = (props) => {
  return Image({ ...props.asset.image, contentMode: "fill" })
    .resizable()
    .frame({ height: 420 })
    .cornerRadius(8);
};

const HeaderRow = (props) => {
  return HStack({ spacing: 24 }, [
    ProductImage(props),
    ProductTitle(props),
    ShopButton(props)
  ]);
};

const body = (props) => {
  return VStack({ spacing: 28 }, [
    HeaderRow(props),
    ProductDescription(props),
    ReviewsSection(props)
  ]);
};
Sub-components are private to the file. To create a component shared across multiple Tools, author it as its own component in the Components tab — it’ll show up in the sidebar and become available to allowlists.

​
Custom button styles and modifiers

Button styles use defineButtonStyle():
const PrimaryButtonStyle = defineButtonStyle({
  body: (config) => {
    const [hovered, setIsHovered] = useState(false);

    return config.label
      .frame({ width: 180, height: 44 })
      .background(hovered ? Color("black").opacity(0.8) : Color("black"))
      .foregroundStyle(Color("white"))
      .cornerRadius(23)
      .scaleEffect(hovered ? 1.04 : 1.0)
      .onHover((hover) => {
        withAnimation(Spring(), () => setIsHovered(hover));
      });
  }
});

Button({ label: Text("Shop"), action: () => { /* ... */ } })
  .buttonStyle(PrimaryButtonStyle());
Reusable button styles, modifiers, and shape definitions can be authored as separate components in the package and imported across many layouts.

​
Iterating with the live preview

The preview re-renders on save. A few tips for fast iteration:
  • Add multiple previews entries for different states — empty, populated, error. Switch between them in the preview pane.
  • Edit the preview file directly to test edge cases without touching the test panel inputs.
  • Use the live device preview (App Clip on iOS, Android preview, web link) to test how the component renders on actual hardware before publishing. See Live device previews.

​
Common patterns

A few things you’ll write often:
  • Conditional rendering: Use props.x ? Component(...) : Empty().
  • Asset fallbacks: Test for video before image: props.asset?.video ? Video(...) : Image(...).
  • Looping: props.items.map((item) => ItemView(item)) inside a stack.
  • Spacing: Prefer spacing on stacks rather than Spacer between children.
  • Hover/tap state: Use useState and onHover/onTapGesture modifiers.
